Explore equipment validation benefits, key compliance requirements, and actionable strategies to overcome challenges in regulated manufacturing environments.
Equipment validation is the documented process of confirming that manufacturing machinery, instruments, and systems consistently operate to specifications, performing intended functions reliably and safely. Vital in regulated sectors, it ensures correct installation (IQ), expected operation (OQ), and consistent production performance (PQ) to prevent defects, ensure compliance, and maintain high quality and safety.
Equipment validation began in the mid-1970s, introduced by the US Food and Drug Administration (FDA) officials Ted Byers and Bud Loftus. It arose due to issues with the sterility of injectable medications, highlighting the need for documented proof that the equipment involved in the production consistently produces high-quality products. Soon, the FDA made it a formal requirement, ensuring product quality, safety, and effectiveness, especially in regulated industries.
A well-developed and strictly enforced equipment validation protocol is crucial in confirming the reliability and consistency of manufacturing equipment. Through systematic testing and documentation, this process reduces the risk of defects, recalls, and subsequent regulatory penalties.
Manufacturing sectors such as pharmaceuticals, medical devices, and testing laboratories operate under stringent standards to certify product reliability, ensure consumer safety, and uphold compliance with global expectations. Among the most noteworthy are the following:
ISO 9001 (Quality Management Systems) requires organizations to maintain controlled processes, ensuring that equipment used in production operates within set limits to meet quality objectives.
ISO 13485, a specific quality standard for medical device manufacturers, requires documented validation plans and proof used in design, production, and testing to ensure product safety and effectiveness.
ISO/IEC 17025:2017 applies to laboratories performing testing and calibration. This ascertains that instruments and machinery generate accurate and reliable results.
FDA 21 CFR Part 820 governs quality systems for finished devices intended for human use in the US. Like ISO 13485, this validates and verifies processes and equipment.
EU GMP Annex 15, part of the Good Manufacturing Practice (GMP) guidelines for medicinal products, provides detailed requirements and procedures for equipment qualification to ensure high-quality products.
The equipment validation process isn’t a one-time task; it’s a continuous lifecycle activity. It must follow a phased approach to effectively identify and resolve issues early, preventing them from impacting production. These are the main steps in the process and the vital tasks done:

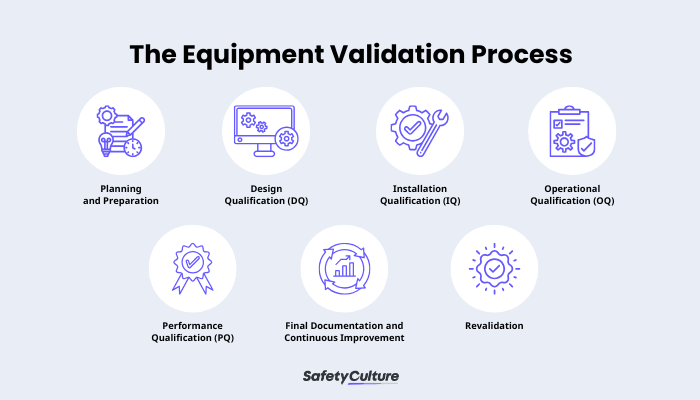

The Equipment Validation Process
While this isn’t considered a stage of equipment validation, this initial step establishes the foundation for the entire activity’s success. All teams (QA, engineering, production, and compliance managers) should be involved to ensure holistic coverage. Here are some equipment validation guidelines to take note of:
Create a Validation Master Plan (VMP) outlining the scope, objectives, responsibilities, timeline, and approach for all validation activities.
Perform a risk assessment to identify critical equipment and establish the appropriate scope of validation.
Develop User Requirement Specifications (URS) detailing performance criteria, regulatory requirements, and operating conditions.
DQ demonstrates that the equipment design meets the user’s functional and regulatory requirements before procurement or installation.
Review specifications, such as engineering drawings and functional descriptions.
Assess how the design affects cleaning, safety, and process control.
Evaluate the supplier’s qualifications and past performance.
IQ verifies that the equipment is installed correctly according to the manufacturer’s specifications and site requirements, including proper setup and environment.
Confirm the physical installation, including location and environmental controls.
Check that all components and utilities (e.g., power supply, air, water) are properly connected.
Ensure proper labeling, safety signage, and accessibility for maintenance.
OQ confirms the equipment operates according to predefined limits and functional specifications under various conditions, including stress or worst-case scenarios.
Run predefined tests (e.g., temperature, pressure, speed, alarms) to verify functions.
Validate critical process parameters and operating ranges.
Test control systems, alarms, interlocks, and safety features.
PQ validates that the equipment performs consistently and reliably during normal production or real-world use, meeting all operational and quality criteria.
Assign qualified personnel to operate the equipment under normal conditions.
Run at least three consecutive batches to show consistency.
Gather and examine product data (e.g., weight, dimension, potency).
All findings should be compiled into a comprehensive record to demonstrate completeness and compliance. Here are some vital deliverables:
Validation report – Summarize each phase, results, identified deviations, recommended corrective actions, and conclusions.
Traceability matrix – Link URS to test results, ensuring comprehensive coverage.
Approval signatures – Obtain these from heads of cross-functional teams, including QA, engineering, and production.
Record-keeping – Store documents in a secure location, making them accessible for future audits or inspections.
Also known as validation equipment maintenance, this involves periodic review, tests, and adjustments. This phase is often triggered by equipment modification or relocation, process changes, updated Standard Operating Procedures (SOPs), and deviations during operation. There are two main types:
Full Revalidation repeats DQ, IQ, OQ, and PQ due to major changes.
Partial revalidation conducts OQ or PQ only for minor adjustments.
Validating equipment is a challenging process because it requires thorough testing, data integrity, and compliance with evolving standards, all without disrupting production timelines. Here are some issues that may arise and how they can be resolved.
Extensive documentation – Traceability is vital in this process. Investing in digital tools for recordkeeping, document control, and compliance checks reduces manual effort and risk of error.
Continuously evolving regulations and technology – New developments make it challenging to keep validation processes aligned and up to date. Implementing robust change control protocols ensures that everyone can adjust swiftly and efficiently.
Resource limitations – Inadequate time, people, and expertise delay the process and compromise results. Aside from providing continuous training, prioritize validation activities based on criticality and risk to focus resources on equipment with the greatest impact.
