Frozen Pipe Burst Inspection Checklist

What is a Frozen Pipe Burst Inspection Checklist?

A frozen pipe burst inspection checklist is a document that can help users systemically identify, assess, and address issues related to frozen pipes that may burst during cold weather. Often used both by homeowners and commercial space owners alike, this tool aims to streamline pipe inspections during or after the winter season.

Definition and Causes

In the winter, pipes freeze because the water passing through them froze first. As water turns to ice, the pipes are filled with more volume compared to what usually runs through them. In some cases, elevated water pressure can also increase the risk of bursting if ice forms within the pipe, as it creates additional strain on the pipe walls.

The ice then adds pressure to the pipes, causing them to burst. When this happens, you increase the chances of mold, electric shock, damage to personal property, and water flow. All of these can also affect the health of individuals in the building, and sometimes, even those in nearby properties.

However, other factors may contribute to frozen pipes and their breakage in the winter. Some of which are the following:

• Inadequate or improper insulation: While any set of pipes may burst in the winter, those located in walls, attics, crawl spaces, basements, and other confined spaces may be more susceptible to freezing and damage as they may not have the proper insulation.

• Random and rapid temperature fluctuations: Sudden changes in temperature outside the pipe can cause them to expand and contract unpredictably, which can lead to freezing.

• Aging: Older or corroded pipes are more susceptible to bursting under pressure from cold water, as they may have weaker fittings and joints.

Importance of a Checklist

Inspecting frozen pipes can be a strenuous task as there are many parts to assess and factors to consider. For this reason, it is essential to have a checklist readily available when conducting frozen pipe inspections. Using a checklist helps identify key issues within your pipes, such as strange water flow and visible frost.

A frozen pipe burst inspection checklist is crucial for several reasons, particularly in preventing and mitigating damage associated with frozen pipes. In particular, it can help with the following:

• Minimizing water damage: In the winter, a thorough checklist can help identify vulnerable areas and prevent additional water damage from occurring.

• Providing a structured approach: A frozen pipe burst inspection checklist provides a structured approach to take immediate actions if a pipe is suspected to be frozen or has already burst.

• Managing documentation: Having a checklist allows building owners to document their inspections and any actions taken, which can be vital for insurance claims related to water damage.

What to Include in a Frozen Pipe Burst Inspection Checklist

Ideally, your frozen pipe burst inspection checklist should have the following:

• Building or property name

• Name of inspector

• A section to verify the following:

  • Was there a pre-winter inspection conducted?

  • Were past identified issues with pipes and property structure addressed?

  • Were foams or insulation sleeves added to pipes before winter?

  • Are pipes maintained properly and regularly, even outside of winter?

  • Were exposed pipes properly covered before winter?

• A section with simple “Yes” and “No” choices to guide inspectors in answering the following:

  • Are the pipes free from frost?

  • Is water coming from the faucet normally?

  • Are exterior walls and heated spaces in good condition?

  • Are the pipes free from cracks?

  • Are ceilings, floors, and walls free from unusual water markings or leaks?

  • Have the necessary photos and videos been taken for proof?

• A section verifying if there is a need for external help or additional plumbers

• A field for additional comments, suggestions, and recommendations

• Signature of inspector

The best way to create and manage a frozen pipe burst inspection checklist would be to do so digitally. Going paperless and switching to more modern means helps simplify the inspection process, allowing inspectors to fill out forms on-site and submit them immediately on their phones, tablets, or personal computers. Corrective actions can also be created and assigned immediately on a digital checklist. This reduces the time spent on administrative tasks compared to paper forms, which require manual data entry and storage later on.

Digital frozen pipe burst inspection checklists can also be stored in the cloud, ensuring that changes are saved in real-time and accessed almost immediately. This also ensures managers can access inspection data whenever they need to, enabling them to monitor progress and compliance from anywhere. This instant access facilitates quicker decision-making and response to potential issues.

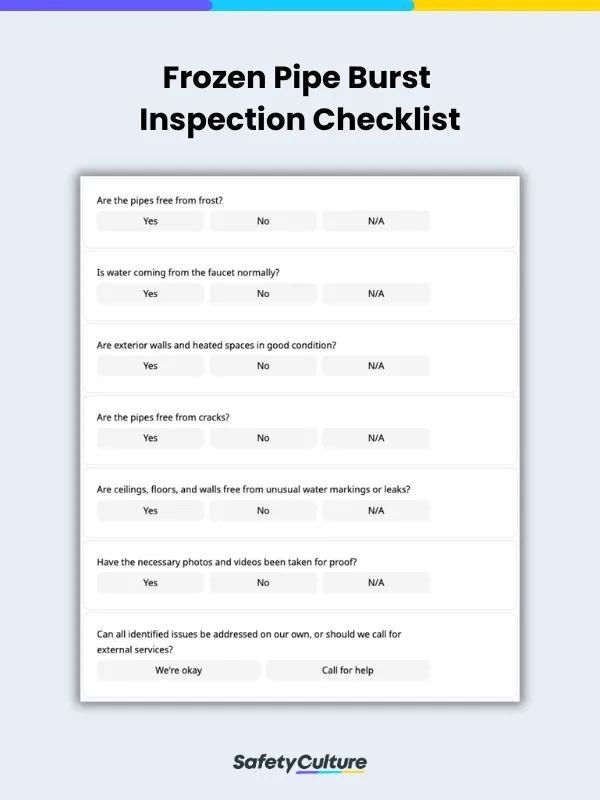

Here is an example of a frozen pipe burst inspection checklist in use for your reference:

Frozen Pipe Burst Inspection Checklist Sample Report | Mitti (by SafetyCulture)
