What is a Dimensional Inspection Report Template?
A dimensional inspection report template is a standardized document used to record and communicate the precise measurements of a manufactured part or product. It serves as a structured format for inspectors to document critical dimensions, tolerances, measurement methods, and results, ensuring that each feature meets design specifications.
Benefits
Providing precise measurements is a crucial aspect of dimensional inspections, since this process determines whether manufactured products meet design specifications. A properly filled out report helps identify quality issues and streamline visual inspections to ensure consistency throughout manufacturing.
In line with this, using a dimensional inspection report template offers other key benefits for manufacturers, engineers, and quality control teams. This includes:
Consistency: Ensures that measurements and inspection data are recorded in a uniform format every time.
Accuracy: Reduces the risk of missing critical dimensions or tolerances during inspections.
Efficiency: Saves time by providing a ready-made structure, so inspectors don’t need to create a report from scratch.
Compliance: Helps demonstrate that products meet design specifications and industry standards.
Issue Mitigation: Supports early detection of dimensional issues to prevent product defects and costly rework.
What to Include in a Dimensional Inspection Report Template
The elements of a dimensional inspection report template vary on the kind of product and its specific design measurements. However, the essentials typically include the following:
Product Details: This includes the type of product, identification code, batch number, and other important information regarding the product to be inspected.
Dimensional Inspection Checks: A template should have a list of specific measurements to be verified during the product inspection. It is important to be as detailed as possible and include as many dimensional measurements as needed to get precise results.
Corrective Action Section: In order to address noncompliance, a template should have a dedicated section to highlight issues and bring up corrective actions. This makes it easier to streamline issue mitigation.
Final Inspection Results: It is important to determine whether a product passes or fails the dimensional inspection based on the recorded results. This helps maintain transparency and accountability throughout the whole process to stay audit ready.
How to Use a Dimensional Inspection Report Template
In order to document accurate measurements and maximize the features of this checklist, it is crucial to know how to properly fill it out. Here is a simple step-by-step guide:
Fill out the information in the title page. This typically includes the name of the inspector, the location where the inspection is taking place, and any needed product identification details.
Conduct the dimensional inspection check. Answer the questions included in the template and fill out the measurement requirements as needed. Provide photo attachments when needed, especially if a product has an identified measurement defect.
Determine whether the product passes the inspection. It is important to finish the inspection by providing a final input on the dimensions of a product. Provide any additional comments or suggestions as necessary to provide better context.
Complete the inspection with a sign-off.

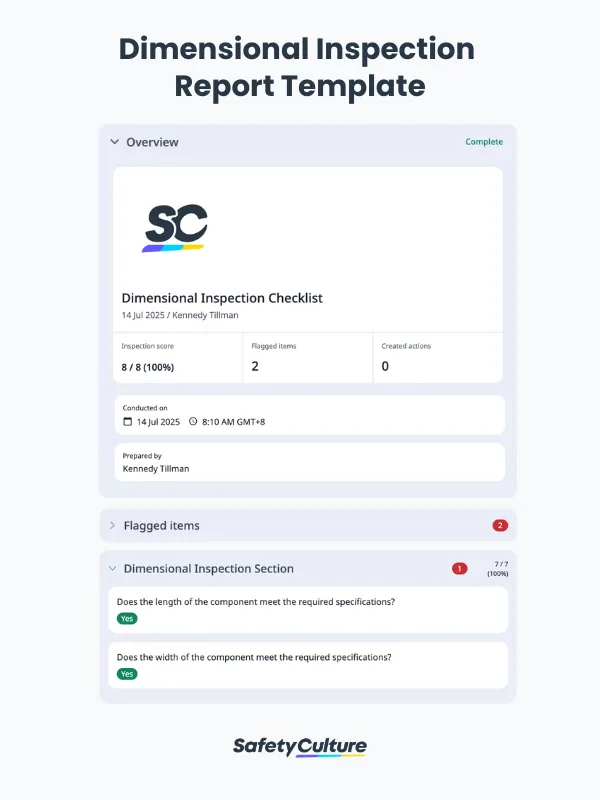

Sample Dimensional Inspection Report
To give a better understanding of what a completed dimensional inspection report template looks like, here is a sample PDF report:
Preview Dimensional Inspection PDF Report
