Understand what arc flash is, its causes, and the dangers that it poses. Learn what you can do for arc flash prevention and the protection of workers in various sites and areas.
An arc flash is a sudden electrical explosion or discharge that happens when electric current travels through the air from one conductor to another. It can also be defined as a dangerous electrical event that results in a bright flash of light, intense heat, and pressure waves. Also called a flashover, when it occurs, the results can be extremely violent, and if a person is in close proximity to the flash, they can suffer injury or even death.
According to Electrical Safety U.K., an arc flash can reach 20,000°C, which is four times the heat of the sun. The resulting sound is similar to a firecracker popping or a gunshot. Examples of arc flash occurrences include lightning and the use of an electrical arc welding machine.
An arc flash can be caused by an electrical fault in a power distribution system. Faulty wiring, loose connections, failure in the electrical system of a building or structure, or even faulty equipment can also cause an arc flash. It may occur in small spaces, such as a crawl space under a house. It can also occur in large spaces, such as a basement, or in a machine room.
Workplace Safety Awareness Council has given examples of its causes in their handouts on arc flashes. Any of these could be a source of an arc flash in the workplace:
Dust
Dropping tools
Accidental touching (of two conductors)
Condensation
Material failure
Corrosion
Faulty installation
When it pertains to the severity of an arc flash injury, three factors come into play:
Proximity of the worker to the event
Size of the explosion
Time exposed to the hazard
Typical injuries and results from an arc flash include:
External and internal burns
Intoxication from the inhalation of hot gasses or of vaporized metal
Eye damage and blindness caused by the ultraviolet light of the arc flash
Fire that could spread rapidly through a building
Flying molten metal
Extremely high pressure
Ear damage caused by a sound blast
Heat (upwards of 35,000°F or 20,000°C)
It is also possible that an explosive force (known as an arc blast) will be formed, depending on the severity of the arc flash.
Although the possibility of an electric arc forming is low, the severity of the resulting damage can be severe. Control measures can be implemented to minimize the risk of an arc flash occurring in the workplace. The National Fire Protection Association (NFPA) details how to comply with the Occupational Safety and Health Administration (OSHA) regulation through the NFPA 70E standard.
NFPA 70E: Standard for Electrical Safety in the Workplace® (2015 edition) addresses electrical safety and contains the requirements to perform shock and arc flash hazard management.
NFPA 70E is a national consensus safety standard that identifies safe work practices to ensure workers’ safety from electrical hazards. According to NFPA 70E, only trained and qualified employees are permitted to work on or near exposed energized electrical parts, and they must supervise unqualified personnel who are in the proximity of the hazard. NFPA 70E states “This standard addresses safety of workers whose job responsibilities entail interaction with electrical equipment and systems with potential exposure to energized electrical equipment and circuit parts.”

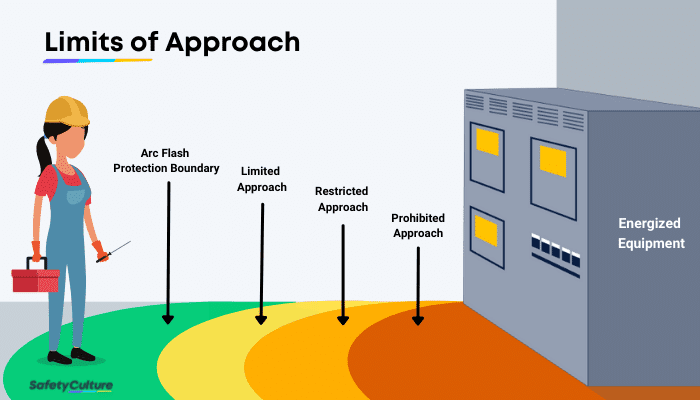

NFPA 70E has developed specific approach boundaries designed to protect employees while working on or near energized equipment. In the Informative Annex C of NFPA 70E (2015 edition), an illustration was given on the limits of approach, which are boundaries for protection in working. Below is an infographic showing the limits of approach:
Limits of Approach
Arc Flash Protection Boundary (outer boundary) —this is the farthest boundary from the energized equipment. If an arc flash occurred, this boundary is where a worker could receive a curable, first-degree burn. Workers must not cross this boundary unless they are wearing proper electrical Personal Protective Equipment (PPE).
Limited Approach —this is the distance where barriers should be placed to protect personnel. An approach limit is set at a distance from an exposed live part in the presence of a shock hazard.
Restricted Approach —this is the distance wherein there is an increased risk of shock. Only qualified personnel are allowed and with the appropriate PPE based on the required protection.
Prohibited Approach (inner boundary) —this is a distance from an exposed component that is the same as the distance between the exposed component and the live part. However, the “prohibited approach” boundary was removed in the 2015 NFPA 70E edition.
The limit of approach varies among equipment. Some equipment will have a bigger flash protection boundary while others will have a shorter flash protection barrier.
Another effective way to help prevent arc flashes is to use the 4P Model for arc flash hazard management: Predict, Prevent, Protect, Publish.
The 4P’s Approach
Predict —pertains to identifying and calculating the potential risks by making an arc flash study. It is advised that the Institute of Electrical and Electronics Engineers (IEEE) 1584 Guide for Performing Arc Flash Hazard Calculations 2002 be utilized when predicting the severity of the effect of an arc flash.
Prevent —pertains to mitigating the use of principles of prevention or the hierarchy of controls in designing, planning, or eliminating the risk.
Protect —pertains to reducing the risk of injury with proper protection or PPE if the hazard can’t be removed.
Publish —pertains to collecting information for risk assessment and use in training, as well as providing safety warning labels where the risk cannot be eliminated.
In compliance with NFPA 70E, energized equipment should be installed with warning labels, such as arc flash stickers (also known as electrical hazard labels). These warning labels inform workers about the potential of electrical explosion or high voltages.
The 2017 edition of NFPA 70®: National Electrical Code states in Article 110.16: “Electrical system, such as switchboards, switchgear, panelboards, industrial control panels, meter socket enclosures, and motor control centers that is in other than dwelling, and is likely to require examination, adjustment, servicing, or maintenance while energized, shall be field or factory marked to warn qualified persons of potential electric arc flash hazards…The marking shall be located so as to be clearly visible to qualified persons before examination, adjustment, servicing, or maintenance of the equipment.”
It also states that labels shall contain the following:
Nominal system voltage
Fault current at the service overcurrent device
The clearing time of service overcurrent protective devices based on the available fault current at the service equipment
The date the label was installed
Modifications are made to the labeling in the NFPA 70E. In order to properly protect workers from arc flashes, you will need to provide the following information:

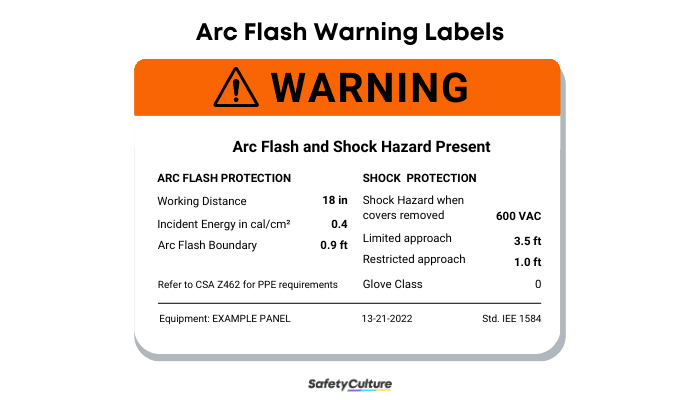

Arc Flash Warning Labels
Danger or warning header
Working distance—the distance of the worker from the arc source
Incident energy—the thermal energy amount
Arc flash boundary—the distance where someone standing in the boundary might get a second-degree burn if they are not wearing protective clothing
“Shock Hazard When Cover is Removed”—the voltage level of the equipment
Limited approach boundary
Restricted approach boundary
Glove class—the proper rubber insulated gloves
Arc flash PPE category requirement
In the revised version of NFPA 70E published in 2018, one of the major changes was including the hierarchy of controls in its standard regulations. Specifically, the standard now states that the elimination of the hazard must be the first and foremost priority. Performing energized work with PPE as a last line of defense is also heavily emphasized in the latest update on NFPA 70E.

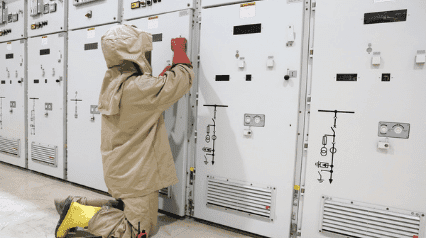

NFPA 70E (2015) classified personal protective equipment into four categories, with each category containing the minimum Arc Rating value for the PPE that is required.
Category 1: Minimum Arc Rating of 4 cal/cm2 | Category 2: Minimum Arc Rating of 8 cal/cm2 | Category 3: Minimum Arc Rating of 25 cal/cm2 | Category 4: Minimum Arc Rating of 40 cal/cm2 | |
Arc Rated Required Clothing | AR Long Sleeve Shirt and Pants or AR Coverall | AR Long Sleeve Shirt and Pants or AR Coverall | AR Flash Suit Jacket andPants or AR Coverall | AR Flash Suit Jacket and Pants or AR Coverall |
Required AR Face and Head Protection | Face Shield or Arc Flash Suit Hood | AR Flash Suit Hood or AR Face Shield and Balaclava with minimum arc rating of 8 cal/cm2 | AR Flash Suit Hood | AR Flash Suit Hood |
Required AR Hand Protection | N/A | N/A | Rubber insulating gloves and leather protectors or AR gloves | Rubber insulating gloves and leather protectors or AR gloves |
As Needed | AR Jacket, Rainwear, Parka, Hard Hat Liner | AR Jacket, Rainwear, Parka, Hard Hat Liner | AR Jacket, Rainwear, Parka, Hard Hat Liner | AR Jacket, Rainwear, Parka, Hard Hat Liner |
